Construction example

Midori-ku, Sagamihara City | K’s Residence | We performed roof overlay work using Ridgeway!

BEFORE
Before



AFTER

After



Hello!
This is Yamanaka from Kakeru Koumuten Co., Ltd., a specialist in roofing, exterior wall painting, and exterior renovations located in Aoba-ku, Yokohama, Kanagawa Prefecture!
This is a case study of an exterior renovation project at a residence in Midori-ku, Sagamihara City, Kanagawa Prefecture.
There are several types of exterior renovations, and the work we performed this time is a roof overlay (cover method) project (Ridgeway)! We carried out the work on both the main roof and the lower roof of this residence!
During the work on the lower roof, the balcony became an obstacle, so we also removed and reattached the balcony!

On this page, we will explain the actual results of the work performed by Kakeru Koumuten!

Thank you very much for choosing Kakeru Koumuten Co., Ltd. from among many contractors.





Roof Overlay (Cover Method) Construction Steps

1. Balcony Removal & Existing Roof Ridge Cap Demolition

Dismantling ridge metalDismantling balcony
We will dismantle the existing roofing materials (ridge metal, snow guards) that are unnecessary for the

roof overlay method! Since the balcony needs to be temporarily dismantled during the lower roof construction, we will take apart the balcony!

2. Roofing Installation (Waterproof Sheet)

Roofing sheetRoofing sheet

The roofing used on the main roof is Nissin Kogyo/Kappa 23!
It is made of modified asphalt roofing, which is said to have double the durability of regular asphalt roofing.

The roofing used on the lower roof is Tajima Roofing/Tadis Self!
It is a delayed adhesive type modified asphalt roofing, which is also said to have double the durability of regular asphalt roofing.
As a primary waterproofing measure, if the roofing is properly installed, there will be no leaks!
We will ensure it is securely adhered to prevent it from blowing away.

Since the slope of the lower roof is gentle, we used a highly waterproof adhesive roofing! [/chat]

3. Custom Fabrication (Curlicue, Eaves, Valley)

Ridge processing

We process components such as eaves and decorative metal before the main roof construction!
The components used are made of galvalume steel.

4. Main Construction (Asahi Fiberglass/Ridgeway)

4. Main Construction4. Main Construction

After processing the components, we will install the Ridgeway main body up to the ridge! We will apply single cement at the overlapping areas during the installation.
Once we have installed up to the ridge, we will set up a wood batten, which is necessary for securing the ridge metal. There are types of battens made from cedar and resin, and this time we used a resin type!
The resin type is expected to have three times the durability compared to cedar!

5. Ridge Metal, Rain Guard Metal Processing, and Sealing at Various Locations

Ridge Metal and Sealing

ridge cap and sealing

We will process and install the ridge cap. We will firmly apply sealing on the inside of the joints.
For the wall edge, we will process and install a component called a rain gutter flashing.
We use stainless steel nails and screws that are resistant to rust!

6. Cleaning

cleaning

We will clean up any debris that has fallen onto the balcony and rain gutters. We will thoroughly carry out this task as nails and metal fragments can lead to injuries. The balcony will also be restored to its original state, marking the completion of the work!

The roofing material used is Ridgeway from Asahi Fiberglass.
Ridgeway comes with a 10-year manufacturer’s warranty.
Since it uses natural stone that is baked on the surface, it is a roofing material that does not require painting, thus reducing maintenance costs!
Because it uses fine natural stones on the surface, you won’t be troubled by rain noise.
Additionally, it is a lightweight roofing material, making it strong against earthquakes and providing seismic resistance.

* After installation, the surface decorative stones may fall off for about a week, but there is no issue with quality.

Colors

■ Dual Black
Ridgeway Black

■ Harvard Slate
Ridgeway Harvard Slate

■Vintage Green
Ridgeway Green

■Dual Brown
Ridgeway

■Earthtone Cedar

Ridgeway Earthtone Cedar

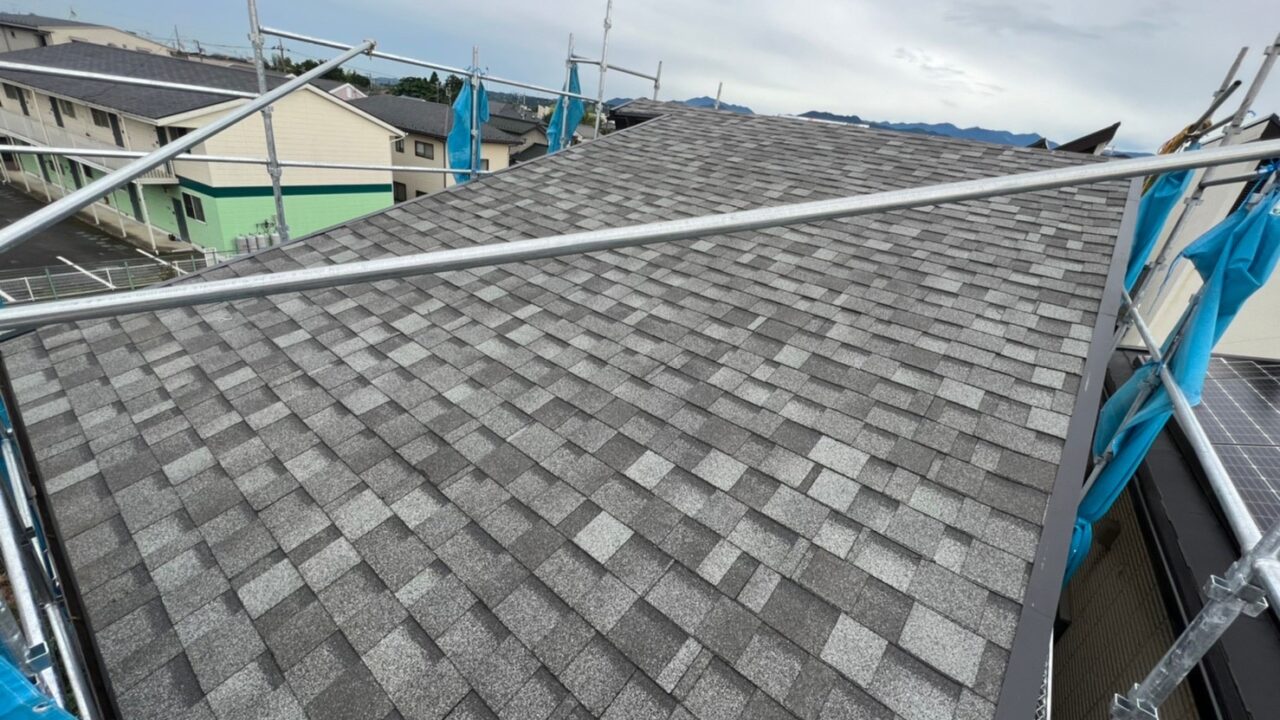

This time, the roof work using Harvard Slate was finished very well!
The customer was extremely satisfied, and I was very happy too!
Thank you very much!

Please check out other roofing work results from here!

What is the Roof Overlay (Cover Method)?

The roof overlay method involves leaving the current roof almost as it is and placing a new roof on top of it, effectively covering it.
Literally, it is a method of covering a roof with another roof. Therefore, the roof becomes double-layered. Since the roof is laid over, it is also referred to as “overlapping roofing.”

Benefits of the Overlay Method

Since a “new roof” is placed over the “current roof,” demolition work is almost unnecessary, meaning that very little waste is generated.
This is the biggest feature and leads to various benefits.

The only parts that require demolition and waste disposal are the ridge caps, so compared to complete roof replacement, the cost is lower.
In 2004, regulations regarding the concentration of asbestos in raw materials were changed (for details, please refer to the Ministry of Health, Labour and Welfare’s website).
Building materials used in constructions before 2004 may contain asbestos. Asbestos-containing materials are difficult to demolish due to their high environmental impact, and the costs for demolition and waste disposal are also high. The overlay method, which generates almost no waste, is ideal for such roofs.

Some of you may wonder if it is safe to live in buildings that use asbestos-containing materials, but rest assured. As long as there is no destruction or crushing, it will not disperse into the air.
If you are unsure about the type of roof on your home, please feel free to consult us.

Additionally, we can complete the work in a shorter period than painting or re-roofing. A shorter construction period means lower labor costs, which in turn makes the expenses more affordable.
The psychological anxiety of having to live in an environment that is different from usual is also reduced.
If scaffolding is set up, there may be inconveniences such as difficulty entering and exiting or being unable to open windows. Being able to return to normal life in a short period is a significant advantage.

Our company specializes in roofing work, and the roof overlay (cover method) is the most frequently performed service we offer. We are very grateful that we are continuously able to carry out roof overlay (cover method) projects without interruption.

Roof Material

Asahi Fiberglass/Ridgeway

Fiberglass Ridgeway
Manufacturer Warranty 10 years
Expected Durability 25 to 30 years
Color Used This Time

Harvard Slate

Ridgeway Harvard Spray
